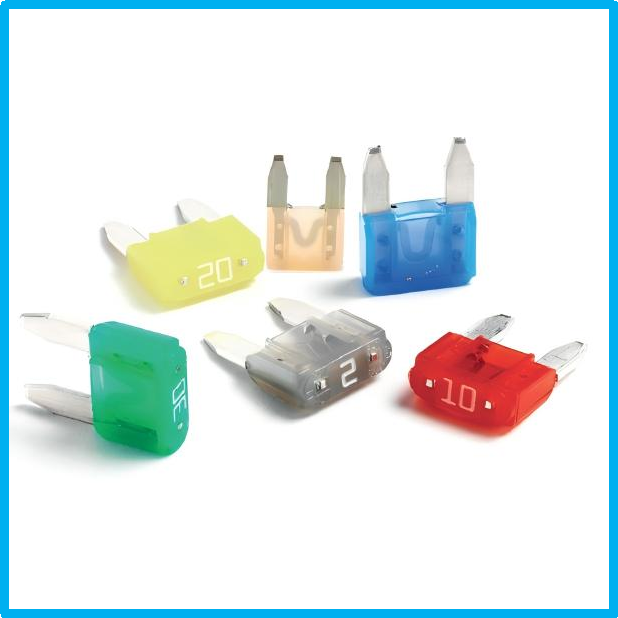

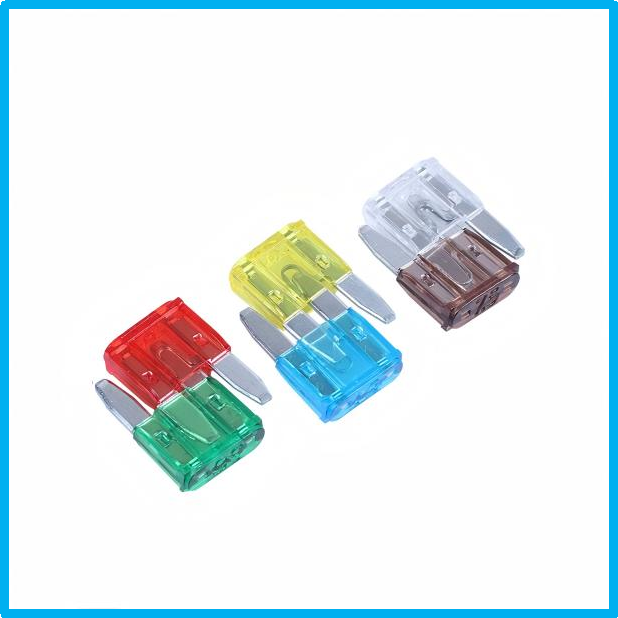

規格 Specifications
Breaking force: 1000A@80VDC
分斷力：1000A@80V
Voltage Rating: 32-48-58-80VDC
額定電壓：32-48-58-80VDC
Operating Temperature Range: -40?C to +200?C
工作溫度范圍：-40?C to ~200?C
Terminals: Ag plated zinc alloy
端子：鋅合金
Housing Materials: Nylon/PC
外殼材質：尼龍/PC
Standards compliant: SAE J2077、ISO 8820、UL 248 Special Purpose Fuses
符合：SAE J2077，ISO 8820，UL 248專用熔斷器
Dimensions/尺寸：
FUSE PARAMETERS：保險絲參數：
| Part Number | Current Rating | Voltage Rating | Typ. Voltage Drop | Cold Resistance | I2t | Housing Color |
| (V DC) | ||||||
| LDMIN-01 | 1A | 32/48/58/80 | 179 mV | 70 mΩ | 0.97A2s | Black |
| LDMIN-02 | 2A | 32/48/58/80 | 171 mV | 55.60 mΩ | 2.8 A2s | Gray |
| LDMIN-03 | 3A | 32/48/58/80 | 153 mV | 33.75 mΩ | 9.4 A2s | Purple |
| LDMIN-04 | 4A | 32/48/58/80 | 121 mV | 23.48 mΩ | 17 A2s | Pink |
| LDMIN-05 | 5A | 32/48/58/80 | 129 mV | 17.75 mΩ | 25 A2s | Tan |
| LDMIN-7.5 | 7.5A | 32/48/58/80 | 135 mV | 10.85 mΩ | 68 A2s | Brown |
| LDMIN-10 | 10A | 32/48/58/80 | 108 mV | 7.42 mΩ | 93 A2s | Red |
| LDMIN-15 | 15A | 32/48/58/80 | 98 mV | 4.58 mΩ | 270 A2s | Blue |
| LDMIN-20 | 20A | 32/48/58/80 | 96 mV | 3.21 mΩ | 380 A2s | Yellow |
| LDMIN-25 | 25A | 32/48/58/80 | 86 mV | 2.36 mΩ | 625 A2s | Natural |
| LDMIN-30 | 30A | 32/48/58/80 | 87 mV | 1.85 mΩ | 1130 A2s | Green |
| LDMIN-35 | 35A | 32/48/58/80 | 85mV | 1.5mΩ | 1430 A2s | Purplish red |
| LDMIN-40 | 40A | 32/48/58/80 | 82mV | 1.32mΩ | 1430 A2s | Purplish red |
Time-Current Characteristics：電流時間特征
| % of Rating | Opening Time | |
| MINI | MAX | |
| 110 | 4H | / |
| 135 | 0.75S | 10m |
| 200 | 0.15S | 5S |
| 350 | 0.080S | 0.250S |
| 600 | 0.030S | 0.100S |
Time-Current Characteristic Curves：時間-電流特性曲線
<
<
<
