規格 Specifications

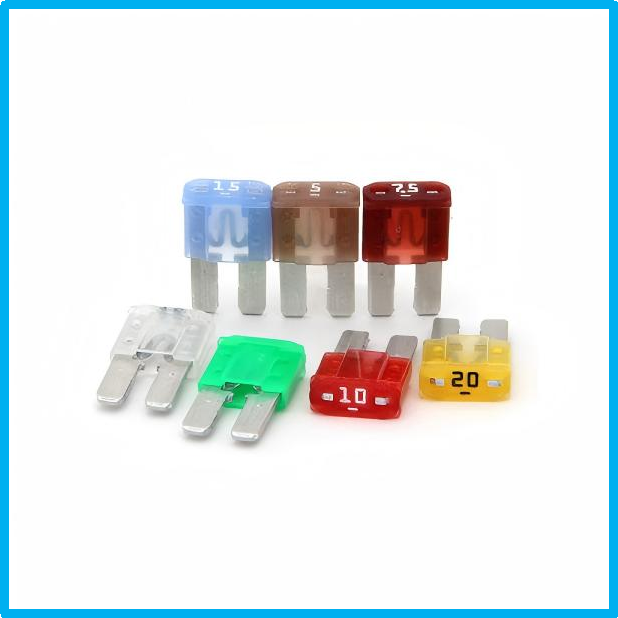

The MICRO2 Fuse is the new standard for vehicle circuit protection. Its sub-miniature design meets the need for more circuits to be protected while utilizing less space and its ability to cope with high temperatures in adverse environments makes the MICRO2 Fuse of recommended choice for protection.
?根據使用狀況，保險絲特性可能改變
According to the using status, the fuse characteristics may change.
?額定電壓：小于直流32V/48V
Rated voltage: DC less than 32V,
?分斷容量：1000A@32V DC ?使用溫度：-40℃～+125℃
Breaking capacity: 1000A@32V, DC, temperature: -40 ℃ ~ +125 ℃
?材質：1、鋅合金；2、塑料PC/尼龍
Material: 1、zinc alloy , 2、 PC plastic/Nylon.
Dimensions/尺寸：
FUSE PARAMETERS：保險絲參數：
| Prt Number | Rating Current(A) | Rating Voltage(V) | Typ. Voltage Drop(mV) | Cold Resistance | I2t | Color | |
| LDMIC-NL-05 | 5A | 32V | 129 | 17.4 | 17 | Orange | |
| LDMIC-NL-7.5 | 7A | 32V | 135 | 10.8 | 47 | Tan | |
| LDMIC-NL-10 | 10A | 32V | 108 | 7.82 | 89 | Red | |
| LDMIC-NL-15 | 15A | 32V | 98 | 4.58 | 189 | Blue | |
| LDMIC-NL-20 | 20A | 32V | 96 | 3.5 | 397 | Yellow | |
| LDMIC-NL-25 | 25A | 32V | 86 | 2.6 | 585 | Natural | |
| LDMIC-NL-30 | 30A | 32V | 87 | 2.1 | 1028 | Green | |
Time-Current Characteristics：電流時間特征
| % of Rating | Opening Time Min/Max(s) | ||
| 110 | 100h/- | ||
| 135 | 0.75 sec / 120 sec | ||
| 160 | 0.30 sec / 50 sec | ||
| 200 | 0.15 sec / 5 sec | ||
| 350 | 0.04 sec / 0.50 sec | ||
| 600 | 0.02 sec / 0.100 sec |
Time-Current Characteristic Curves：時間-電流特性曲線
Time-Current Characteristic Curves：時間-電流特性曲線
Temperature Rerating Curve
<
<
<
<
