Dimensions units in mm

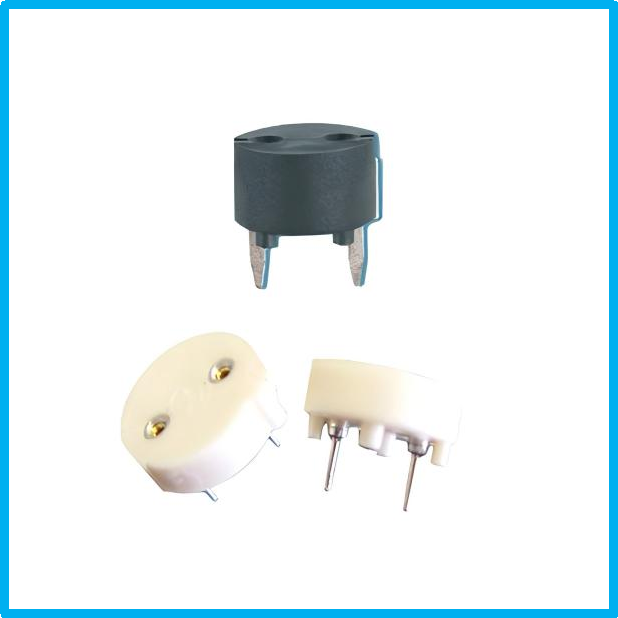

Type | 559 Series (Lead Free) | 560 Series | |
Compatible Fuses | TR5/TE5 | TR5/TE5 | |
Materials | Holder: Black Thermoplastic, UL94 V-0 Polyamide PA 66 | Holder:Thermoplastic，UL 94 V-0 Polyester PET | |
Metal Parts: Copper alloy; solderable tinned | |||
Electrical Data (23℃) | Rated Voltage: 250V | ||
Max. Current/Power: 6.3 A /1.6 W | |||
Mounting | PC Board, 7.18 mm pin spacing | PC Board, 5.08 mm pin spacing | |
Solderability | max. 260℃, 10 s (Wave) | ||
Minimum Cross Section | Conducting path - 0.1 mm2 | ||
Unit Weight | 0.63 g | 0.4 g | |
<
<
<
<
