1.Description, Features and Applications

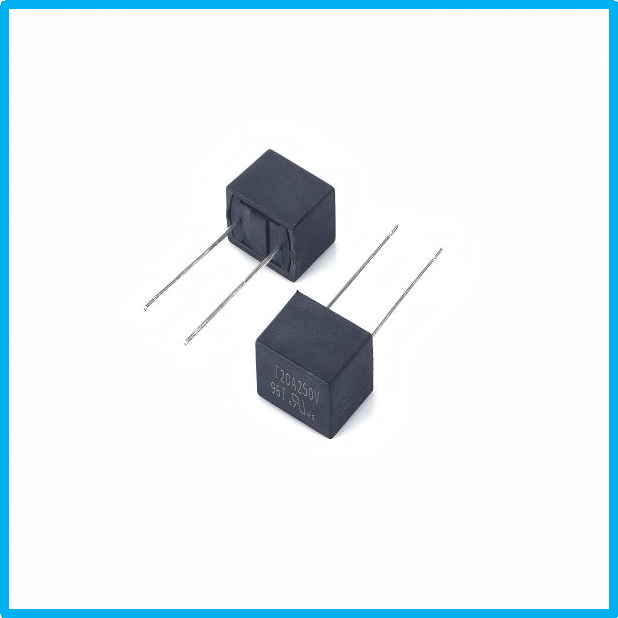

The 96T series square Surface Mount fuses are designed for high-end cloud computing servers, telecom base station power supplies, blockchain servers, and new energy vehicle battery management systems, RoHS compliant, Halogen Free and lead(Pb) exempts of the requirements of RoHS Directive(2002/95/EC), with U.S. (UL/CSA) safety agency approvals. Provide board level primary and secondary circuit protection in a wide variety of applications. With excellent inrush current withstanding capability, excellent reliability for thermal and mechanic shock, also have a high reliability and stable solder ability, end caps are available in gold/silver plated.
Features：
?Time-Lag ? Small size(12mm*60mm*9mm)
?High current rating available ? Wide operating temperature range( -55°C to 125°C)
?Low temperature de-rating ? RoHS compliant, Halogen Free
?Tape and Reel for automatic placement ? Conflict free metals
Applications：
?Telecom base station power supplies ?Cloud computing? Block chain server ? Battery Management System
2、Standards：In accordance with UL 248-14.
3、Electrical Characteristics for Series
% of Ampere rating | OpeningTime |
150% | 大于60分鐘（60 min Minimum） |
210% | 小于 2 分鐘 (2 min Max) |
4、Electrical Specifications by Item
Notes:
1. Derating depicted in this curve is in addition to the standard derating of 20% for continuous operation.
Example:For continuous operation at 75 degrees celsius, the fuse should be derated as follows:I = (0.80)(0.85)IRAT= (0.68)IRAT
5、Dimensions and Structure
6、Material Details
編 號 NO. | 零 件 名 稱 Part Name | 材 質 Material |
1 | 外殼 Cap | 黑色或棕色熱可塑性聚酰胺（UL94-V0） Black or Brown Thermoplastic Polyamide PA 6.6, UL 94 V-0 |
2 | 內芯 Base | 黑色或棕色熱可塑性聚酰胺（UL94-V0） Black or Brown Thermoplastic Polyamide PA 6.6, UL 94 V-0 |
3 | 熔絲 Fuse element | 合金 Alloy |
4 | 引線 Lead wire | 鍍錫銅線 Copper, Tin-plated |
7、Product Characteristics
7.1 引腳拉力強度 / Lead Pull Strength
5 牛頓 10±1 秒 / 5N for 10±1 Seconds
7.2 引腳推力強度 / Lead Thrust Strength
2 牛頓 10±1 秒 / 2N for 10±1 Seconds
7.3 可焊性 / Solder ability
波峰焊/Wave : 260℃，≤3s;
烙鐵焊/Soldering Iron: 350±10℃，≤1s.
7.4 耐焊接熱 / Soldering Heat Resistance
波峰焊/Wave : 260℃，10s;
烙鐵焊/Soldering Iron: 350℃，3s
8、Packaging
A、Bulk packing： Bulk 1000 pcs in per poly bag；
B、Taped packing：1000 pcs per inner box
<
<
<
<
