Description

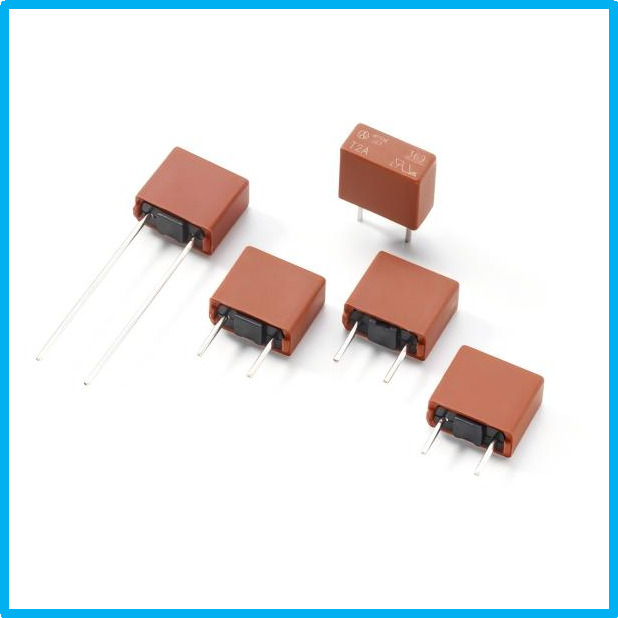

TE5, time-Lag type, 300V rated, designed in accordance to IEC 60127-3.
Features
? Lead-free ? Reduced PCB space requirements ? Direct solderable or plug-in versions ? Internationally approved
? Low internal resistance ? Shock safe casing ? Vibration resistant ? Halogen free
Applications
? Battery Charges ? Consumer Electronics ? Power supplies ? Industrial Controllers
| % of Ampere Rating | Opening Time |
| 150% | 1 Hour, Min. |
| 210% | 120 s, Max. |
| 275% | 400 ms Min. ; 10 Sec. Max. |
| 400% | 150 ms Min. ; 3 Sec. Max. |
| 1000% | 20 ms Min. ; 150 ms Max. |
Electrical Characteristic Specifications by Item
| Rated Current | Amp Code | Voltage Rating | Breaking Capacity | Voltage Drop 1.0×IN max. (mV) | Power Dissipation 1.5×IN max. (mW) | Melting Integral 10×INmin. (A2s) | Agency Approvals | |||||
| VDE | S | UR | PSE | CQC | KC | |||||||
| 0050 | 50mA | 300V | 50A/300V AC | 1350 | 85 | 0.00305 | X | X | X | X | X | |
| 0063 | 63mA | 300V | 1200 | 85 | 0.0082 | X | X | X | X | X | ||
| 0100 | 100mA | 300V | 1350 | 100 | 0.065 | X | X | X | X | X | ||
| 0125 | 125mA | 300V | 1100 | 110 | 0.1 | X | X | X | X | X | ||
| 0160 | 160mA | 300V | 1000 | 160 | 0.2005 | X | X | X | X | X | X | |
| 0200 | 200mA | 300V | 950 | 185 | 0.443 | X | X | X | X | X | X | |
| 0250 | 250mA | 300V | 900 | 200 | 0.735 | X | X | X | X | X | X | |
| 0315 | 315mA | 300V | 600 | 215 | 1 | X | X | X | X | X | X | |
| 0500 | 500mA | 300V | 400 | 235 | 1.55 | X | X | X | X | X | X | |
| 0630 | 630mA | 300V | 200 | 255 | 2.63 | X | X | X | X | X | X | |
| 0800 | 800mA | 300V | 110 | 280 | 3.8 | X | X | X | X | X | X | |
| 1100 | 1.00A | 300V | 115 | 400 | 5.8 | X | X | X | X | X | X | |
| 1125 | 1.25A | 300V | 100 | 500 | 9.75 | X | X | X | X | X | X | |
| 1160 | 1.60A | 300V | 95 | 600 | 13.5 | X | X | X | X | X | X | |
| 1200 | 2.00A | 300V | 90 | 700 | 21 | X | X | X | X | X | X | |
| 1250 | 2.50A | 300V | 85 | 750 | 32 | X | X | X | X | X | X | |
| 1315 | 3.15A | 300V | 80 | 1100 | 55 | X | X | X | X | X | X | |
| 1400 | 4.00A | 300V | 75 | 1200 | 100 | X | X | X | X | X | X | |
| 1500 | 5.00A | 300V | 70 | 1000 | 90 | X | X | X | X | X | X | |
| 1630 | 6.30A | 300V | 65 | 1200 | 126 | X | X | X | X | X | X | |
Note: 1.00 means the number one with two decimal places. 1,000 means the number one thousand.
Temperature Derating Curve
Average Time Current Curves
Product Characteristics
| Materials | Base/Cap: Brown Thermoplastic Polyamide PA 6.6, UL 94 V-0 Round Pins: Copper, Tin-plated |
| Lead Pull Strength | 10 N (IEC 60068-2-21) |
| Solderability | 260oC, ≤ 3 sec. (Wave) 350oC, ≤ 3 sec. (Soldering iron) |
| Soldering Heat Resistance | 260oC, 10 sec. (IEC 60068-2-20) 350oC, ≤ 3 sec. (Soldering iron) |
| Operating Temperature | –40oC to +85oC (consider de-rating) |
| Climatic Category | –40oC to +85oC/21 days (EN 60068-1, -2-1, -2-2, -2-78) |
| Stock Condition | +10 oC to +60 oC Relative humidity ≤ 75% yearly average, without dew, maximum value for 30 days - 95% |
| Vibration Resistance | 24 cycles at 15 min. each(EN 60068-2-6)10–60 Hz at 0.75 mm amplitude 60–2000 Hz at 10 g acceleration |
Dimensions
<
<
<
<
