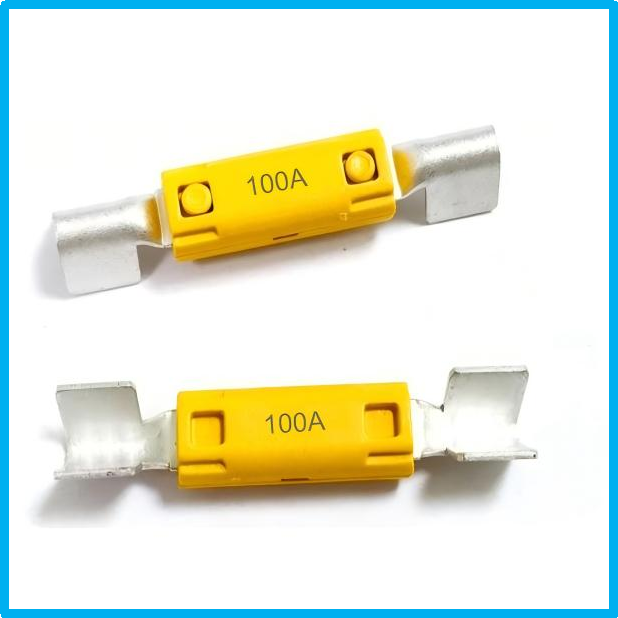

一，產品用途/product Application
本系列保險絲專用于各種狹窄空間(保險絲最小直徑小于7MM) 電氣線路的過載和短路保護，比如電動摩托車電池，電動車的電路保 護以及其它要求小空間的場合。本保險絲直接和母線以鉚壓的方式連接，外加套管，替代了保險絲和保險絲盒的連接，大大降低產品成本以及提升生產效率。
The fuses shown are for in motor vehicles,automobile air-conditioning system,Electric Vehicle to protect electrical wiring and vehicles.It has a small size,below 7mm diameter.And Crimping process make the connect easy with wire.
二，產品特性/Product Feature
1，當被保護電路發生異常或短路或過載嚴重時，本保險絲將會及時熔斷達到保護被保護電氣電路的目的，熔斷后不可恢復，需要更換新保險絲繼續工作。
A fuse offers a bolt-on space saving fuse for high current wiring protection. This action is to be nonreversible and the fuse is intended to be replaced after the circuit malfunction has been corrected.
2，熔斷能力 Interrupting Rating: 1000A @125VDC
3，額定電壓 Voltage Rating: Below 125 VDC
4，工作溫度 Operating Temperature Range: -40°℃ to +125°℃
5，殼體材料 Housing Material: PA
6，熔斷金屬Terminal: 鍍錫銅Tin plated Brass/Copper
三，熔斷特性/Functional Characteristics
| 測試電流 Test Current | Opening Time 30A~100A熔斷時間30A-100A規格 | |
| MIN. | MAX. | |
| 100% | 100 Hrs. | |
| 110% | 4 Hrs. | -- |
| 200% | 3 s | 100 s |
| 300% | 0.3 s | 5 s |
| 600% | 0.1 s | 1 s |
備注：1，根據使用條件的不同，以上特性也會相應的變化。
Characteristics of fuses according to use conditions may change.
2，此款保險絲僅為短路保護應用場合。It is only for short circuit protector.
四，適應標準/ Complies Standard
參考 ISO 8820-5:2003
參考 UL248 Special Purpose Fuses
五，殼體顏色對照表/Case color/current rating list
| Assembly P/N | Case color | Cold resistance R+10%m | I2T I2S | Current & Voltage Rating |
| ANS-S-030 | Yellow | 2.30 | 4400 | 30A125V |
| ANS-S-040 | Yellow | 2.10 | 5500 | 40A125V |
| ANS-S-050 | Yellow | 1.55 | 12500 | 50A125V |
| ANS-S-060 | Yellow | 0.98 | 32400 | 60A125V |
| ANS-S-070 | Yellow | 0.70 | 59500 | 70A125V |
| ANS-S-080 | Yellow | 0.45 | 92100 | 80A125V |
| ANS-S-100 | Yellow | 0.22 | 198000 | 100A125V |
六，電流/電線對照表/Wire/current rating list
| 額定電流 | 適配導線導體AWG |
| ANS-S-030 | UL1015 12~14AWG |
| ANS-S-040 | UL1015 10~12AWG |
| ANS-S-050 | UL1015 10~12AWG |
| ANS-S-060 | UL1015 8~10AWG |
| ANS-S-070 | UL1015 8~10AWG |
| ANS-S-080 | UL1015 8AWG |
| ANS-S-100 | UL1015 8AWG |
七，尺寸圖/Size drawing
八，電流時間特性曲線/I-T curve
ANS-S 100A熔斷曲線
九，溫升曲線/ F-T curve
ANS-S 100A溫升曲線@40°
<
<
<
<
