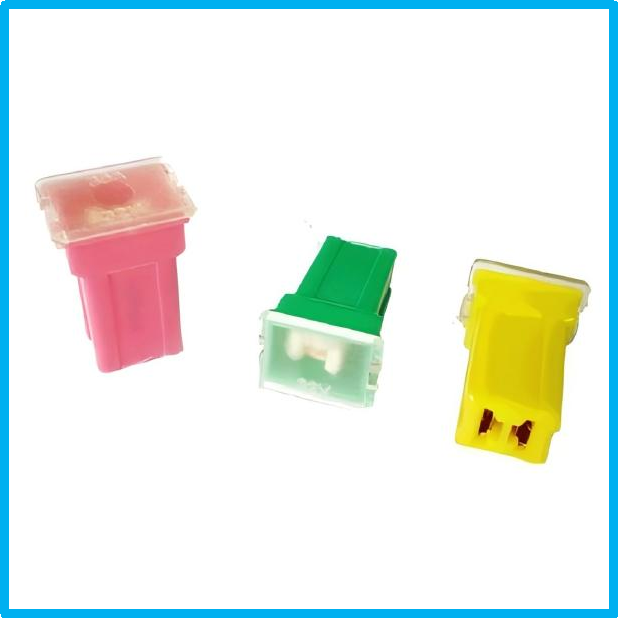

方形汽車保險絲 LD-2938，車用保險絲，汽車插件保險絲
Description
PAL fuses are commonly found on many Japanese and domestic built vehicles.
Dimensions(mm)
Current Cycling: 24?C
The fuses satisfy the performance requirements after 50% of the rated current is applied for 10,000 cycles. Each cycle consists of an interrupted current with the pattern of 5 minutes ON and 10 minutes OFF.
Operating Temperature Range: -40?C to +125?C
Ratings
PAL fuses are commonly found on many Japanese and domestic built vehicles.
Dimensions(mm)
Specifications
Voltage Rating: 32 VDCCurrent Cycling: 24?C
The fuses satisfy the performance requirements after 50% of the rated current is applied for 10,000 cycles. Each cycle consists of an interrupted current with the pattern of 5 minutes ON and 10 minutes OFF.
Operating Temperature Range: -40?C to +125?C
Complies with JASO 0612
Time-Current Characteristics
| % of Rating | Opening Time Min / Max (s) |
| 110 | 14,400 s |
| 200 | 5 s / 100 s |
| 350 | 0.2s / 7 s |
| 600 | 0.040 s / 1 s |
| Part Number Current | Rating (A) | Body Color |
| LD-293820 | 20 | LIGHT BLUE |
| LD-293830 | 30 | PINK |
| LD-293840 | 40 | GREEN |
| LD-293850 | 50 | RED |
| LD-293860 | 60 | YELLOW |
| LD-293870 | 70 | BROWN |
| LD-293880 | 80 | BLACK |
<
<
<
<
